Xanavi tocuh screen of R35 - take everything out now!

Posted by martin on 18 June, 2009 15:53 | Permalink | Interior | Hits (6498)



Ok, it was took from a JDM R35. And now, let me to take everything out. :)

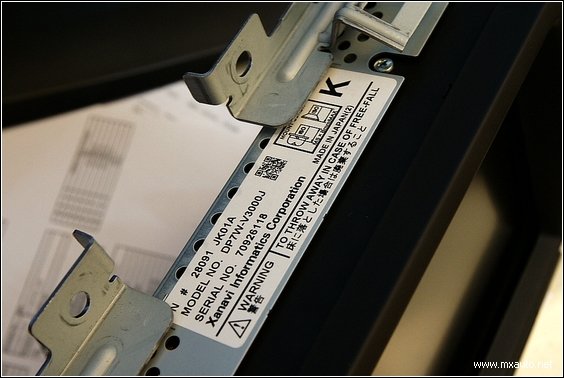

Top view, the product number and model number, and ok, it was made in Japan.

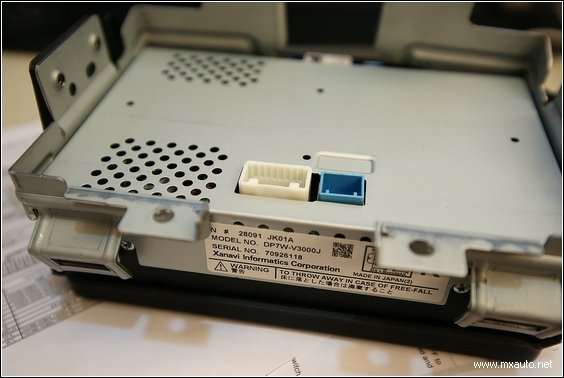

Back view, two connectors, one is 24pins and the other is 2 pins. Only that 24pins connector is used in the car. the part number of female 24 pins connector is TH24FW-NH.

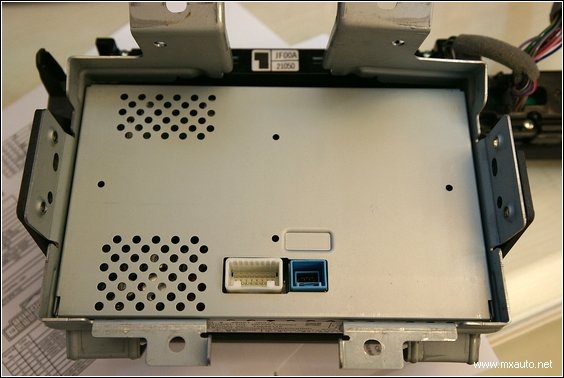

Yet the the other angle to see the back.

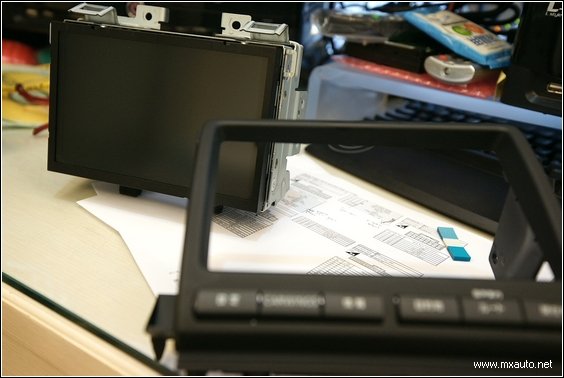

Take the frame out.

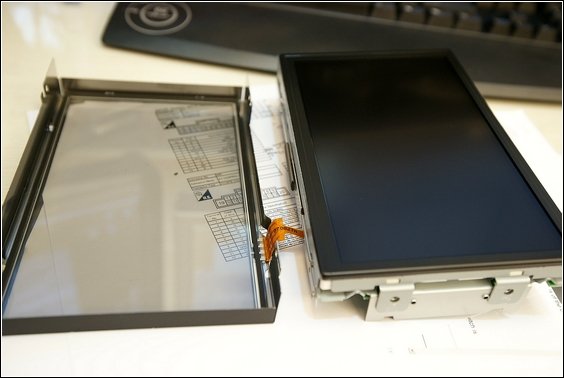

Have the steal case apart.

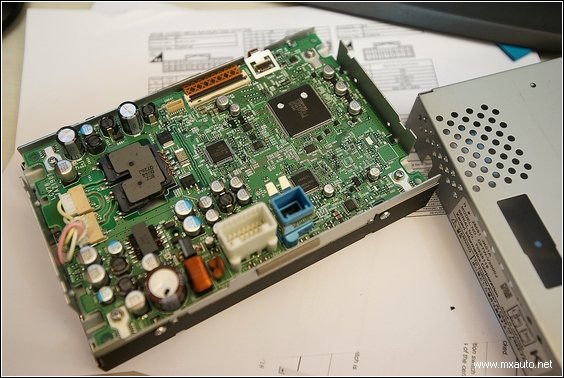

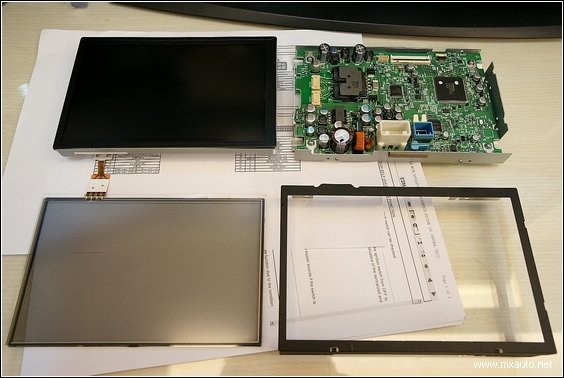

The touch panel and LCD panel.


Four of them.

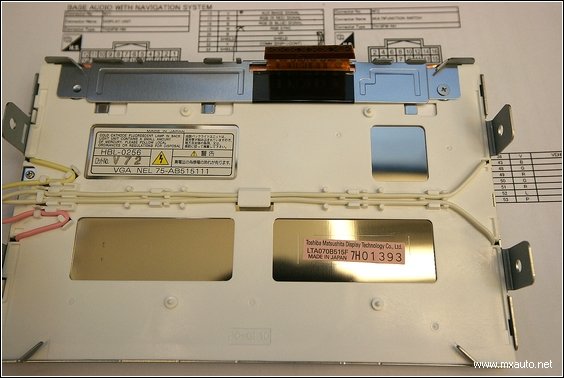

The back view of LCD panel, this panel is from Toshiba Matsushita Display Technology Co., Ltd.


Why i did this? I just would like to make the AUX function easier for those model, e.g. European Model, Taiwanese Model which has no AUX button exists. Have to read more wiring diagram and to do some test to make it possible.
